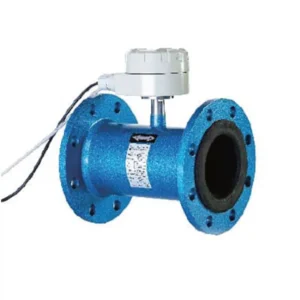

EuroMag 8 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-200S)
৳ 95,000.00
- Sensor Diameter DN200.
- Liquid Temperature -40°C / + 80°C.
- Available Diameters 8” inches(200mm).
- Convertes Compatibility MC608A/B/R/P, MC406.
_uroMag 8 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-200S): The Ultimate Solution for Accurate and Reliable Water Flow Measurement
Its EuroMag 8 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-200S) is a revolutionary and advanced instrument designed to provide precise and reliable water flow measurement for various applications. With cutting-edge technology and an easy-to-use design, this flow meter is the best choice for anyone who wants to get precise and reliable measuring of flow in water.
The Euromag-FM200S is engineered to provide the highest reliability and accuracy, making it an excellent option for various applications. Its size is large enough to allow for easy deployment in large pipelines. Additionally, its sophisticated digital display offers precise and easy-to-read measurements.
This EuroMag 8 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-200S) is suitable for a wide range of uses, including:
- Large-scale industrial processes
- Municipal water supply systems for drinking
- Agricultural irrigation systems
- Wastewater treatment plants
The flow meter is highly durable and robust, making it ideal for use in extreme conditions. The high-end construction guarantees longevity and reliability of measurements even in harsh conditions.
The EuroMag 8-inch digital Electromagnetic Water Flow Meter (Euromag-FM-200S) has modern features that make it easy to operate and maintain. The user-friendly interface makes simple programming and configuration possible, and its self-diagnostic features help pinpoint and fix any issues that might arise.
Overall, the EuroMag 8 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-
FEATURES OF EUROMAG 8-INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-200S)
- Flow tube Material AISI 304, AISI 316 (optional).
- Flanges Material Carbon steel (S235JR – 1.0037), AISI 304 optional, AISI 316 options.
- Available electrodes AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum.
- Internal lining Ebonite.
- Liquid Temperature -40°C / + 80°C.
- Available Diameters 8” inches(200mm).
- Standard flanged connection EN1092-1 PN 16, ANSI 150.
- Flanged Connection on request AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, and others on request.
- Standard Operation Pressure 21 Bar.
- Pressure Drop Class DN≤80 ΔP10 (< 0,10 bar) and DN≥100 ΔP16 (< 0,16 bar).
- Installation requirements/condition U0-D0.
- Protection Degree IP68 permanent submersion at 1,5 m (EN 60529).
- Convertes Compatibility MC608A/B/R/P, MC406.
- Electrical Connections Cableglands M20 x 1.5 + terminal box + sealing resin.
SPECIFICATION OF EUROMAG 8-INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-200S)
| Name | Details |
| Model | Euromag-FM-200S |
| Brand | EuroMag |
| Origin | Italy |
| Flow tube Material | AISI 304, AISI 316 (optional). |
| Flanges Material | Carbon steel (S235JR – 1.0037), AISI 304 optional, AISI 316 options. |
| Available electrodes | AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum. |
| Internal lining | Ebonite. |
| Liquid Temperature | -40°C / + 80°C. |
| Available Diameters | 8” inches(200mm). |
| Standard flanged connection | EN1092-1 PN 16, ANSI 150. |
| Flanged Connection on request | AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, others on request. |
| Standard Operation Pressure | 21 Bar. |
| Pressure Drop Class | DN≤80 ΔP10 (< 0,10 bar) and DN≥100 ΔP16 (< 0,16 bar). |
| Installation requirements/condition | U0-D0. |
| Protection Degree | IP68 permanent submersion at 1,5 m (EN 60529). |
| Convertes Compatibility | MC608A/B/R/P, MC406. |
| Electrical Connections | Cableglands M20 x 1.5 + terminal box + sealing resin. |
PACKING INFORMATION OF EUROMAG 8-INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-200S)
VIDEO REVIEW OF EUROMAG 8-INCH DIGITAL ELECTROMAGNETIC WATER FLOW_METER (EUROMAG-FM-200S)
