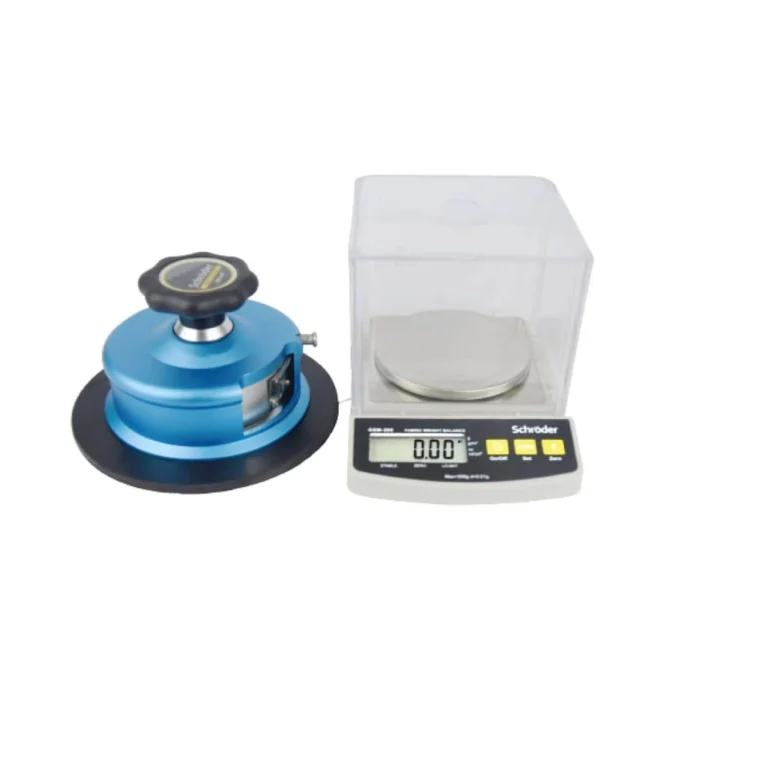

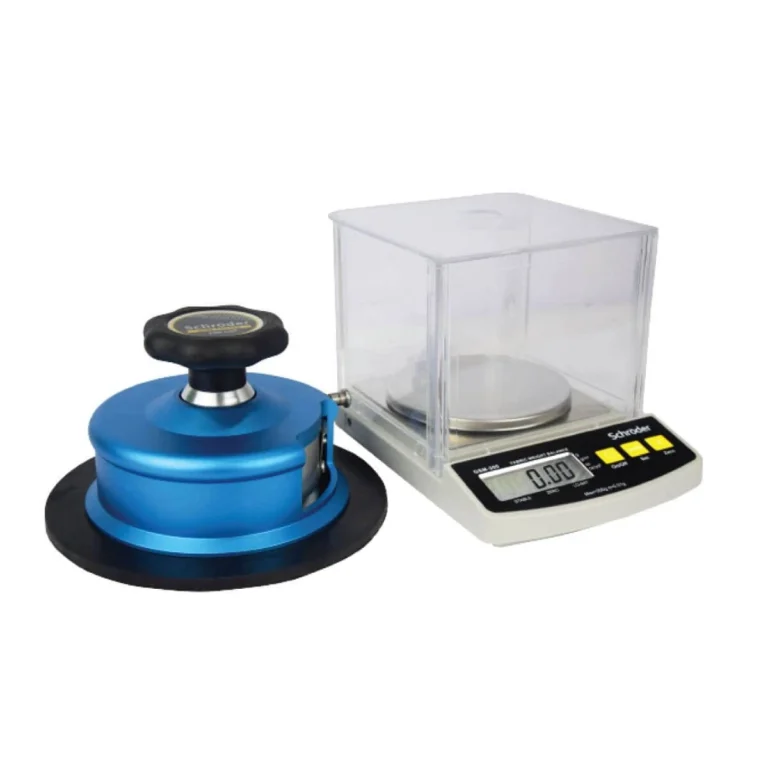

GSM Cutter and Weight Balance Machine Package (3)
৳ 25,500.00
- Auto Shut Off (Selectable).
- Balance Auto Calibration and Backlight (Selectable).
- GSM Cutter Large LCD (6 Digits 15 mm High)
- Balance Large LCD (6 Digits 15 mm High).
Best GSM Cutter and Weight Balance Machine Importer & Supplier in Bangladesh. GSM Cutter and Weight Balance Machine is a textile and garments testing instrument. GSM Cutter and Weight Balance Machine is used for measuring GSM for fabric.
GSM Cutter Machine Importer & Supplier in Bangladesh. GSM Cutter Machine is a garment testing instrument. GSM Cutter Machine is used to cut fabric and other flexible material for measuring GSM Weight.
The GSM Cutter and Weight Balance Machine Package (3) is a piece of testing gear for textiles and apparel. It is used for cutting and quantifying materials, which are critical in the garment manufacturing business. GSM Cutter and Weight Balance Machine Set (3) Thousands of textiles can be calculated. The most effective GSM Cutter and Weight Balance Machine Package is GSM Cutter and Weight Balance Machine Package.
GSM stands for “grams per square meter,” and is a standard unit of measurement in the textile industry for fabric weight. The GSM Cutter is a handheld device that can be used to cut a small, uniform sample of fabric, which can then be weighed to determine its GSM. The Weight Balance Machine is another tool used in textile testing, specifically to measure the weight of fabric or textile materials. It is typically a more precise and accurate tool than the GSM Cutter, and can be used to measure larger samples of fabric. The Weight Balance Machine works by suspending a sample of fabric from one end of a balance scale, and then adding weights to the other end of the scale until it is balanced. Together, the GSM Cutter and Weight Balance Machine can be used to provide important information about the quality and characteristics of textile materials, including their weight, thickness, and density. This information can be used to ensure that textile products meet industry standards and customer requirements, and to identify any potential defects or quality issues in the materials.

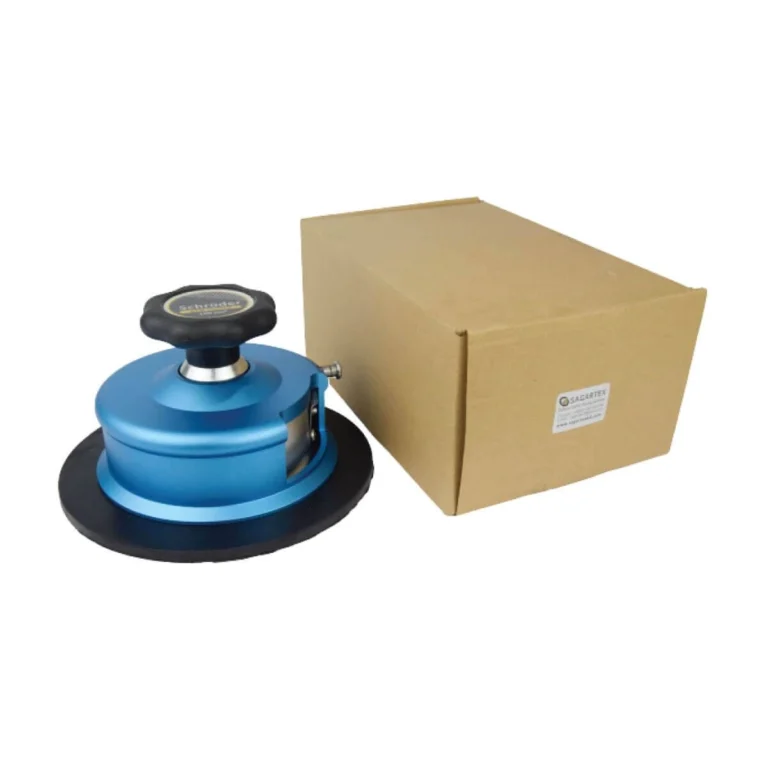

FEATURES OF THE SCHRODER 100CM2 GSM CUTTER MACHINE (100CM2)
- Included with 4 pieces Germany S.S. Blades.
- included with 2 pieces of cutting rubber Board.
- It’s made by Smooth and high-quality SS & MS steel.
- Accurately cut out 100CM² specimens (Diameter 113mm).
- Apply for cut fabric, paper, film, carpet, foam and board.
- We provide One year of free service warranty.
SPECIFICATION OF SCHRODER 100CM² GSM CUTTER MACHINE (100CM²)
| Name | Details |
|---|---|
| Model | 100CM2 |
| Brand | Schroder |
| Origin | Germany |
| Fabric Cutting Area | 100CM2 |
| Machine Diameter | 113mm |
| Blade | 4 pieces |

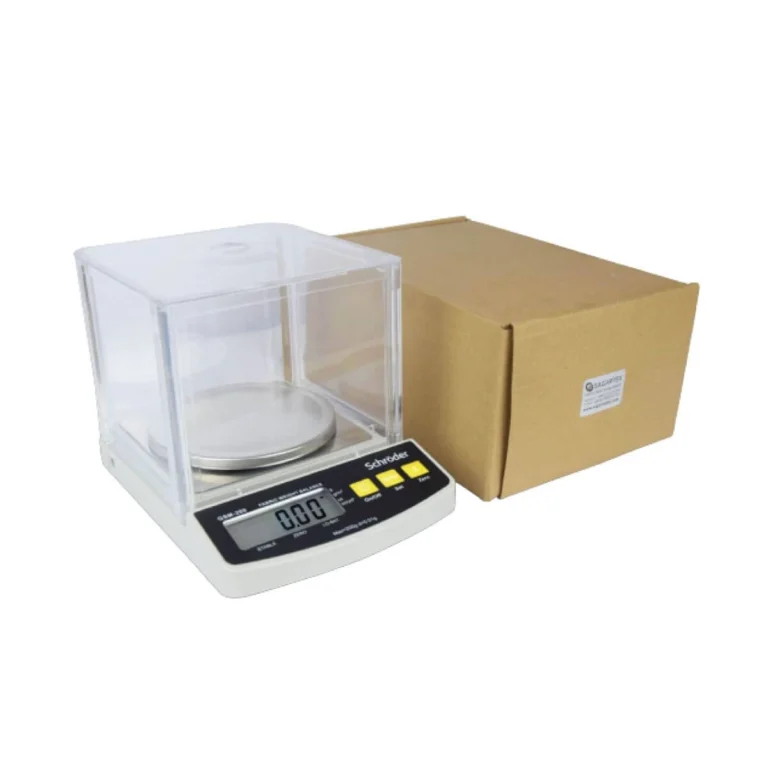

SCHRODER GSM WEIGHT BALANCE MACHINE FEATURES (GSM-200)
- Auto Shut Off (Selectable).
- Auto Zero Tracking .
- Low Battery Indication.
- Large LCD (6 Digits 15 mm High) .
- Auto Calibration .
- Auto Backlight (Selectable) .
SPECIFIC OF SCHRODER GSM WEIGHT BALANCE MACHINE (GSM-200)
| Name | Details |
|---|---|
| Model | GSM-200 |
| Brand | Schroder |
| Origin | Germany |
| Minimum Weight | 0.01g |
| Maximum Weight | 200g |
| Accuracy | 0.01g |
| Display Units | g, g/m2, oz, oz/yd2 |
| Max. Capacity | 200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005oz, 590 oz/yd2 x 0.05oz/yd2 |
| Platform Size | Diameter 100mm (Round) |
| Body | Plastic Wind Shield |
| Power Supply | 12 V/AC ~150mAH Adapter or 6 x AA Batteries |
So, if you want to learn more about the products on our sagartexbd website, please visit our textile lab machinery page.
